Reports Tab - PowerBI Dashboard for Aggregation and One-Line Summary Data

Overview

After running economics on the intended scenario, the current economic run stamp is shown at the top of the screen: Number of wells and Date/Time and options are given in green.  Go to "Reports (Beta)" at the top of the Scenario Page and click "GENERATE" on the One-Line Summary and/or the Res Cat Summary.  This may take some time depending on the size of your data but you can continue working as the analysis runs.  After complete, click on "VIEW" to enter the report area.

Single runs -or- Combo (multiple runs for sensitivity runs) may be analyzed.  For some visualizations, a single Combo must be selected but for others, such as Combo Comparison, one or all may be selected to delineate between.

Anatomy and Interactions

  1. "Measures" are the selected output values and "Fields" are selectable groupings.
  2. At the top of the screen

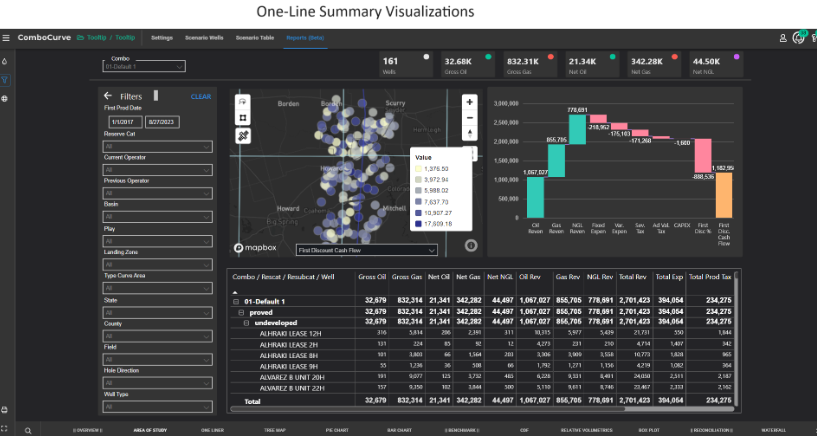

    1. One-Line Summary Visualizations
      1. Select Combo(s) - Select one to view or multiple to compare
    2. Res Cat Summary Visualizations
      1. Reserves Cat - Switch to "All" or one or more reserves categories
      2. Combo(s) - Select one to view or multiple to compare
      3. Date Range - Limit displayed info to a specific date range for all visualizations.  This may often be done on individual visualizations via date sliders.
  3. At the top-right of each screen, the Wells, Gross Oil, Gross Gas, Net Oil, Net Gas, Net NGL are shown for the currently filtered wells, Combos & Reserves Category
  4. At the top-left of each screen, are interactions and filters to select subsets of the data for drill-down.  These mostly apply to the One-Line Visualizations since the Res Cat Summary Visualizations do not contain individual well inputs (only Reserves Categories).  To remove drilldown/filtering, click "clear"
    1. Droplet - allows selection of individual well(s)
    2. Filter - allows use of well header information to drill down to any unique selection
    3. Globe - Shortcut to the map of the filtered data on any screen
  5. At the bottom-left of each screen are controls to:
    1. Print - the current visualization to printer/pdf as shown on the screen
    2. Box - Go to full screen mode
    3. Hourglass - Find a different visualization




One-Line Summary Visualizations

  1. ||Overview|| - Landing page with run information
  2. AREA OF STUDY - Outputs per well or categorization with a map and rev/exp waterfall
  3. ONE LINER - One line output per well
  4. TREE MAP - Visualize the organized, relative contribution of the measure selected per well.
  5. PIE CHART - 4 Square interactive charts for different output.
  6. BAR CHART - 4 Square interactive charts for different output.
  7. ||BENCHMARK|| - Section Header landing page
  8. CDF - Cumulative Distribution Function:
  9. RELATIVE VOLUMETRICS - 4 Square interactive charts for different output as percentages of total.
  10. BOX PLOT - Box and whisker plot for probability analysis
  11. ||RECONCILIATION|| - Section Header landing page
  12. WATERFALL - Used mainly for Combo run to show the reconciliation between one run and another (through multiple steps).  ie, Year 1 reserves to Year 2 reserves with different prices, forecasts, prices, CAPEX, OPEX and Prod Taxes.  These can be either of the below depending on how you organized your Combos in the run:
    1. Cumulative - (Hover on it for a tooltip) This waterfall chart will display the difference of each Combo from the previous Combo.  This is meant to be used if you are accumulating the changes in your Combos from one to the next (a change made in Combo 2 is held to 3,4,5... where further changes are made, each held thereafter).  Your last Combo will be all your changes accumulated together.
    2. Independent - (Hover on it for a tooltip) This waterfall chart will display the difference of each Combo from the original Combo until the final Combo, in which it will display the "fudge factor" it takes to get back to the ending balance.  This is meant to be used if you are making the changes in the Combos independently from one another (each Combo is identical to the original except for changing one qualifier).
  13. SENSITIVITIES - Analyze similar metrics to see impacts.
  14. COMBO COMPARISON - Stacked box charts showing contribution of each phase, etc.
  15. COMBO COMPARISON BY WELL - Side-by-side bar charts with percentage lines on well count and measure.
  16. A2 - 4 Square with selectable metrics to show a stacked bar chart for different Measures

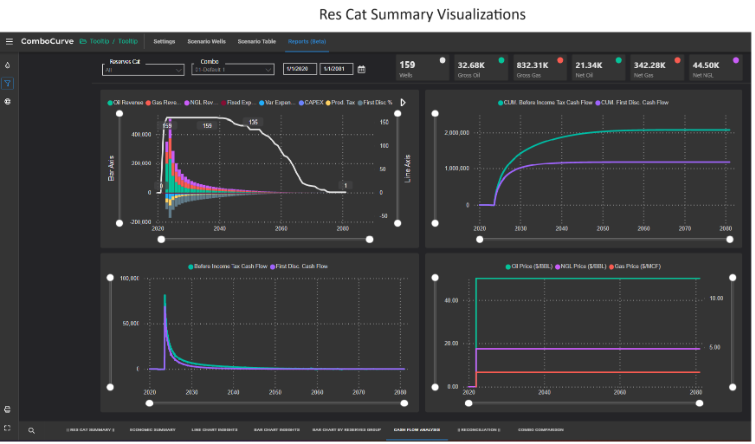

Res Cat Summary

  1. ||RES CAT SUMMARY|| - Landing page that switches to OVERVIEW when "Get Started" is clicked.
  2. ECONOMIC SUMMARY - Summary results by Year, Quarter, Month
  3. LINE CHART INSIGHTS - Graph of production or measure over time (Rate-vs-Time or Rate-vs-Cum)
  4. BAR CHART INSIGHTS - Same as Line Chart but by stacked bars (with a well count)
  5. BAR CHART BY RESERVES GROUP - Same as Bar Chart Insights but grouped by reserves categories
  6. CASH FLOW ANALYSIS - 4 Square on different measures showing changes through time
  7. ||RECONCILIATION|| - Section Header landing page
  8. COMBO COMPARISON - Same as Line Chart Insights but specifically made to compare Combos.

To get back and forth between the analyses and the scenario modeling, you can click on the Scenario Table or the Reports tabs at the top of the screen.  Reports are only good until changes are made in the scenario (they are static to the econ run) and typically stay active until they time out after a few hours.

Note: Units are not sent to PBI reports but are those selected in General Options in the scenario for the current economic run.

Tip: Tooltip highlights can often be helpful for identification (well), drilldown or investigation on any screen by hovering over a well or category.  Also, right-clicking on any visualization often brings up a menu for interaction.
