Moving Axis bounds:

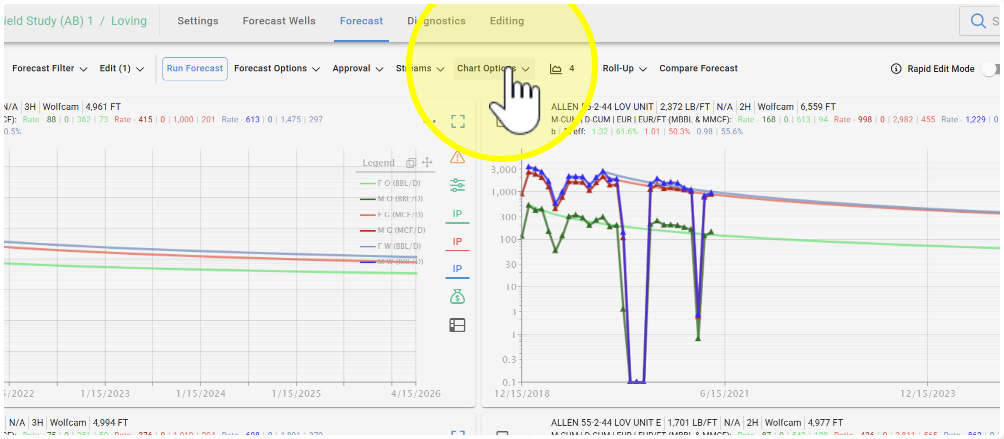

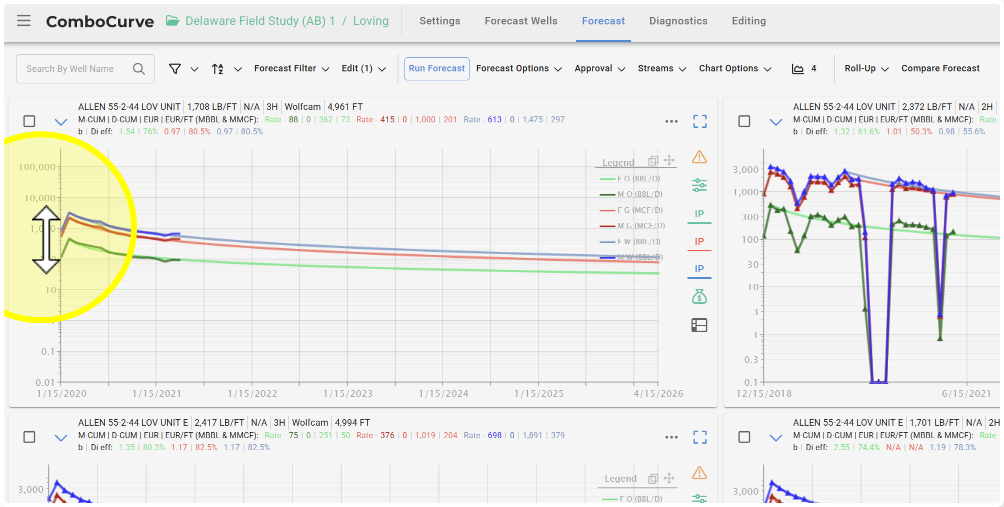

In ComboCurve users can move axis bounds by clicking and dragging the axis to the desired range. This functionality is available on both Y and X axis. The axis adjustments reset when the user goes to the next well/page. The default bounds will still be honored on when the user access the forecast/Modular forecasting pages.

Expand Axis bounds:

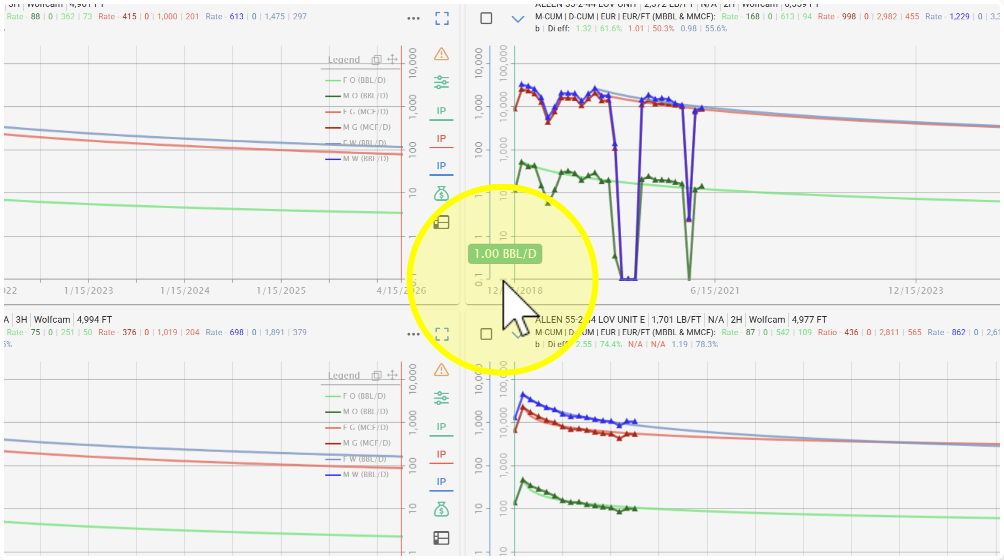

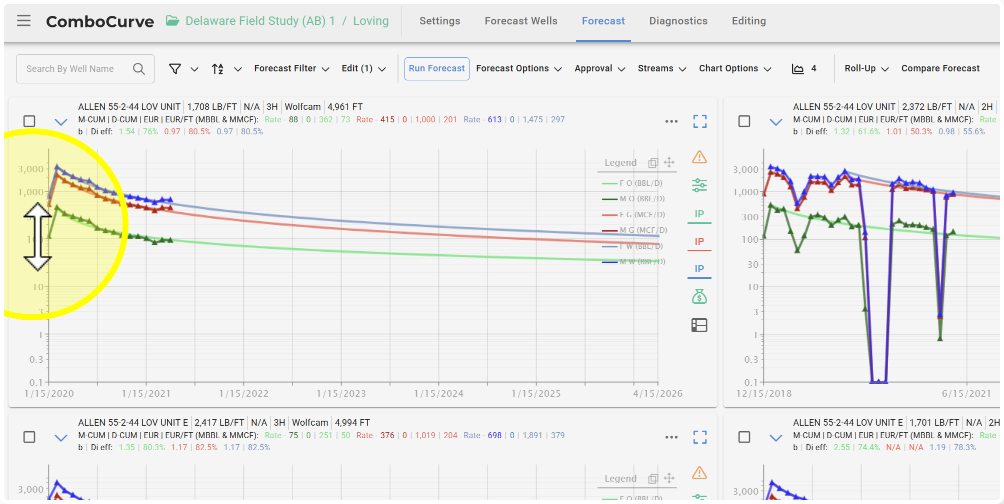

In ComboCurve users can expand axis bound by holding shift and clicking and dragging on the axis. This will stretch the axis bounds to the desired bounds. This functionality is available on both Y and X axis. The axis adjustments reset when the user goes to the next well/page. The default bounds will still be honored on when the user access the forecast/Modular forecasting pages.

Multiple Y - Axes:

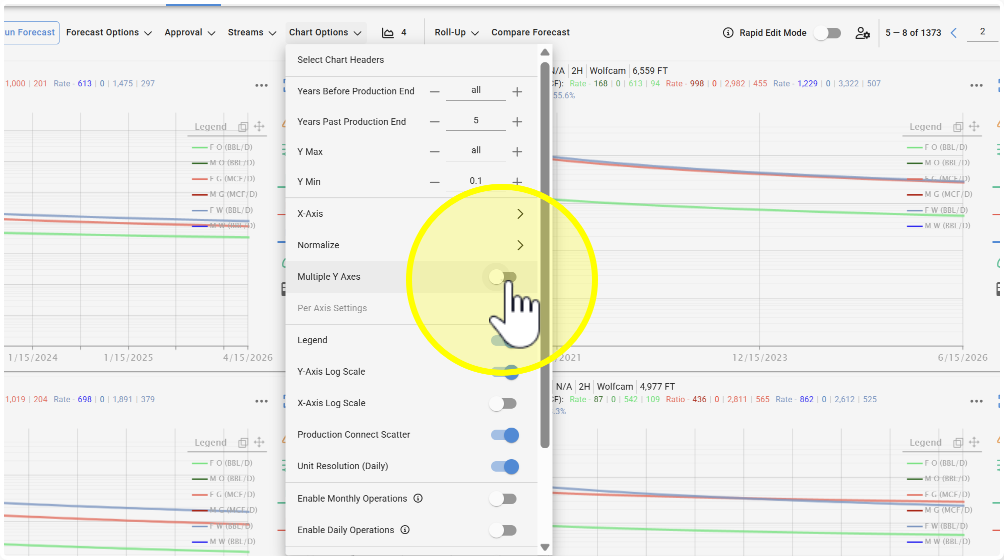

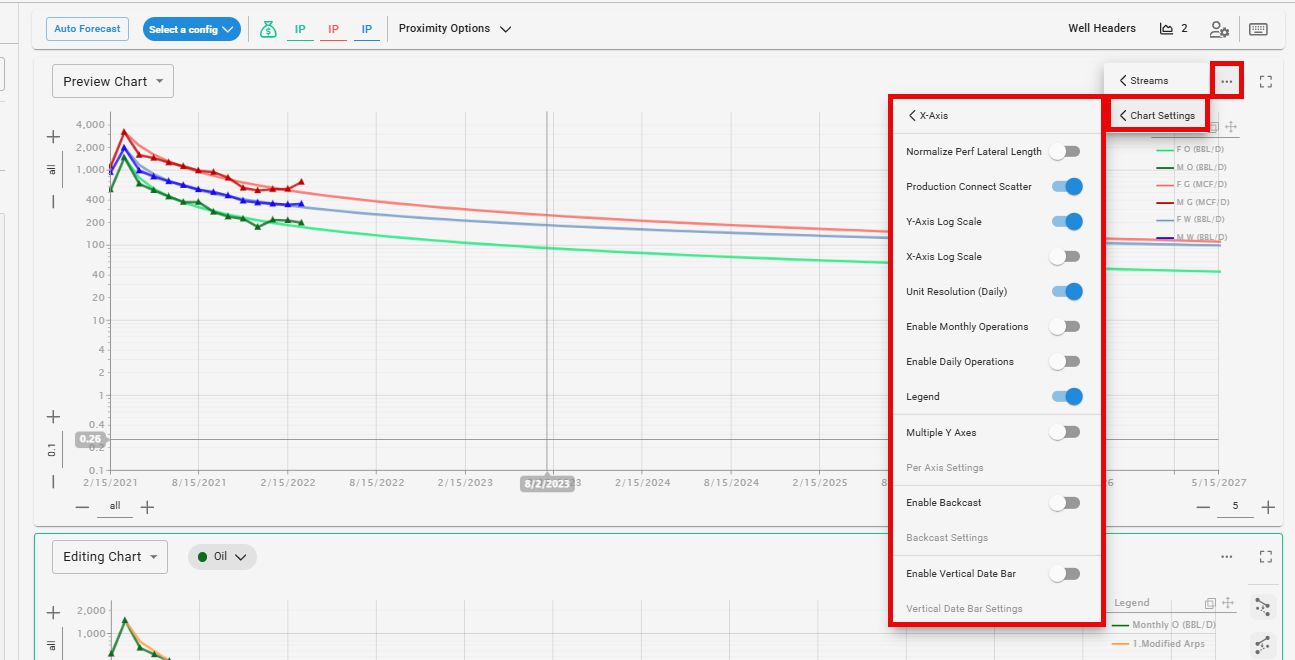

User can have multiple y - axes that are unique per stream. These axes can be adjusted with the same controls mentioned previously in this article.

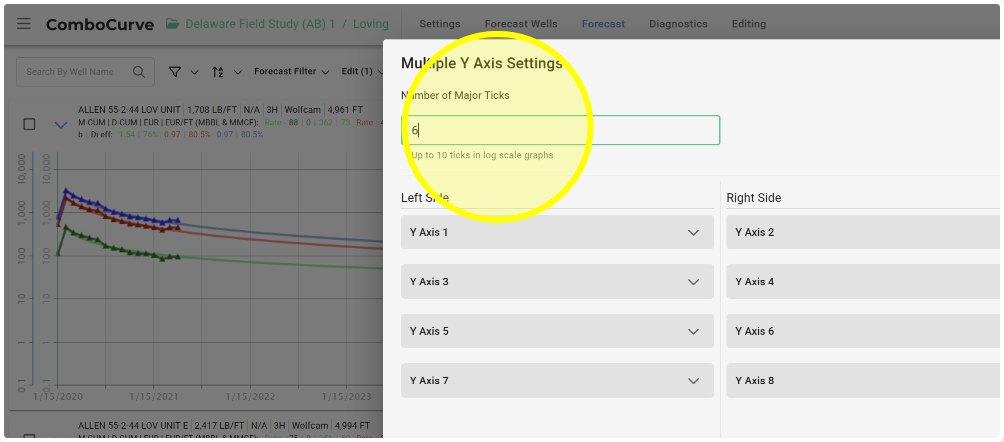

Multiple Y - Axes settings

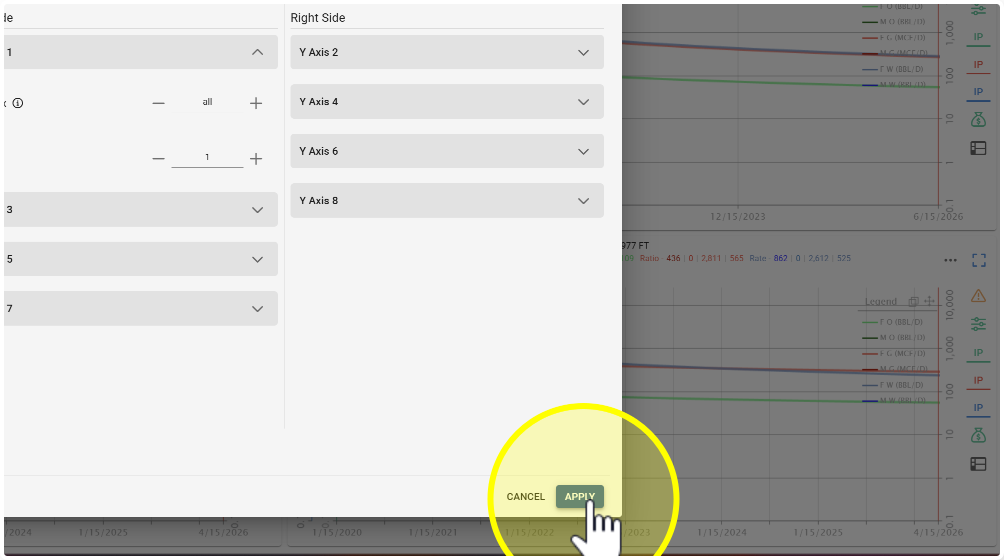

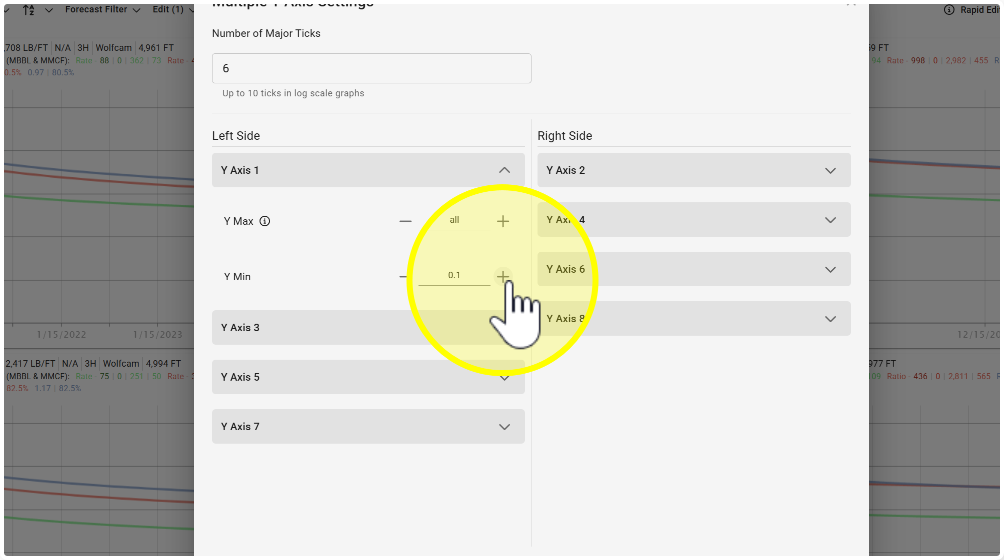

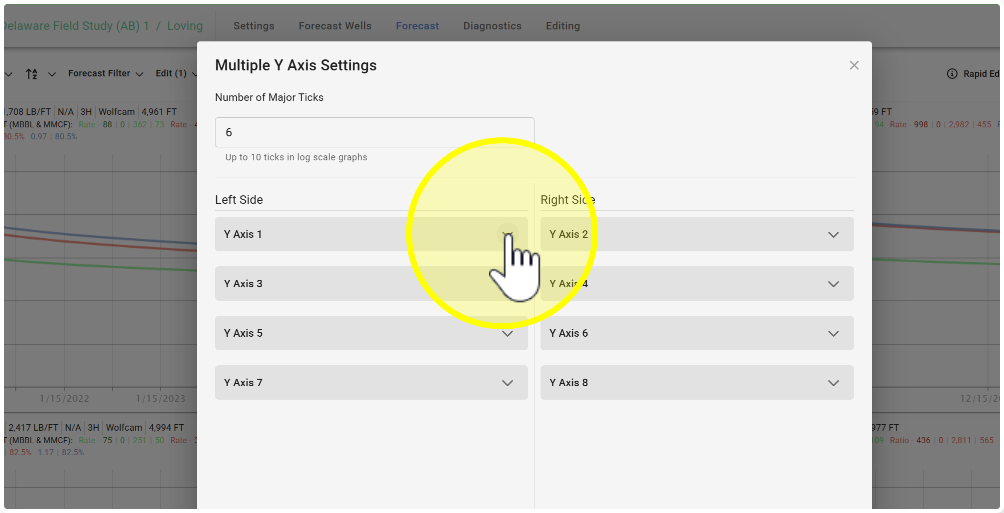

Users can set default axis bounds for each of the axes in the per axis settings page. Users can also set the number of major ticks when the axis is in log scale. These settings are saved to the users chart configurations.

Note:
These settings are currently available to the following charts:
  1. Forecast grid charts (Not currently available in the forecast comparison chart).
  2. Modular forecasting preview chart (Not currently available in the forecast comparison chart and editing chart).
  3. Single Well editing page does not support these functionalities.
  4. Type Curve charts do not current support these functionalities.
