ComboCurve: Scenario Custom Streams

ComboCurve: Scenario Custom Streams

Scenario Custom Streams



Allow for 20-each of two types of streams for non Oil/Gas/Water forecasted products to be used to model things such as fuel gas, NGL as an Arps Forecast, 2nd gas forecast for multi-zone dual completions, for instance.

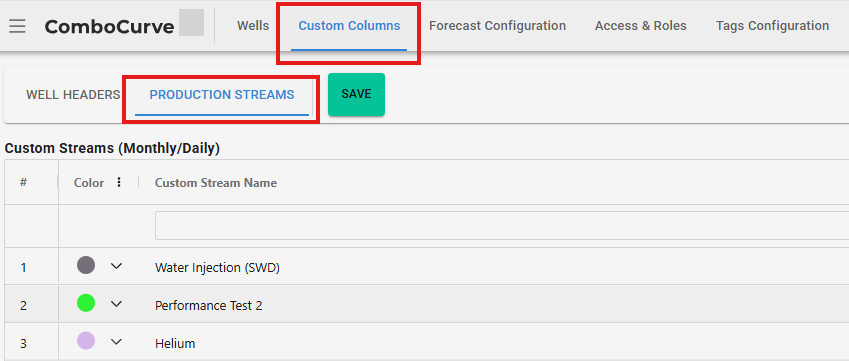

  1. Company Custom Streams (CCS) - All 20 always exist but are renamable in the hamburger icon at the top-left of the screen ==> Company ==> Custom Columns ==> Production Streams

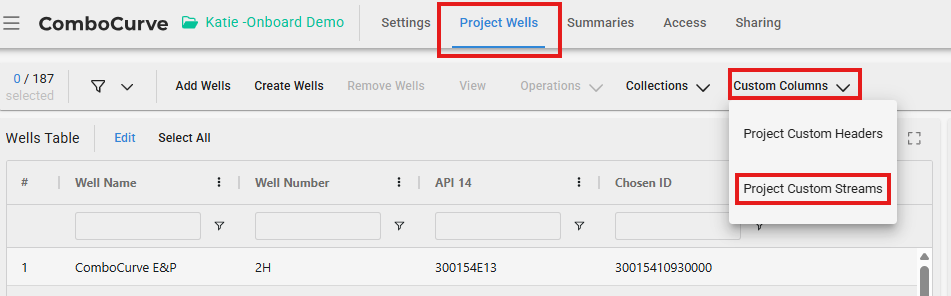

  1. Project Custom Streams (PCS) - At the project landing page ==> Project Wells ==> Custom Columns ==> Project Custom Streams where up to 20 per project can be created.



The following tabs are described for the interaction with custom streams and also denoted just after the headers in the sections below
  1. All tabs - no selection of Custom Streams can be made for triggers like "total fluid".  These only reflect Oil, Gas and Water to date.
  2. Ownership and Reversion - Custom Streams do not yet have phase ownership so get the main ownership listed (not in the Phase Ownership dropdown)
  3. CAPEX - Not Applicable
  4. Pricing & Differentials - Full Support
  5. Expenses - Full Support
  6. Production Taxes - Severance tax can be created for a Custom Stream
  7. Actual or Forecast - Full Support
  8. Risking - Full Support
Note: CCS and PCS can have the same name and only appear in model menus once so are delineated by selecting which one in the "Category" following the "Key", being the stream name.
