ComboSync v2 Overview

Summary

ComboSync v2 is a standalone, no-code-on-the-customer solution which integrates client and public subscription data in and out of ComboCurve.

ComboSync Solution

Components

ComboSync Agent

•           A service that processes data pipelines and ensures the flow of data from source to target. The service is managed by the ComboSync Backend.

ComboSync Backend

•           The cloud service manages the definition and scheduling of the data pipelines. The service doesn’t process data. It only controls the ComboSync Agents and their work.

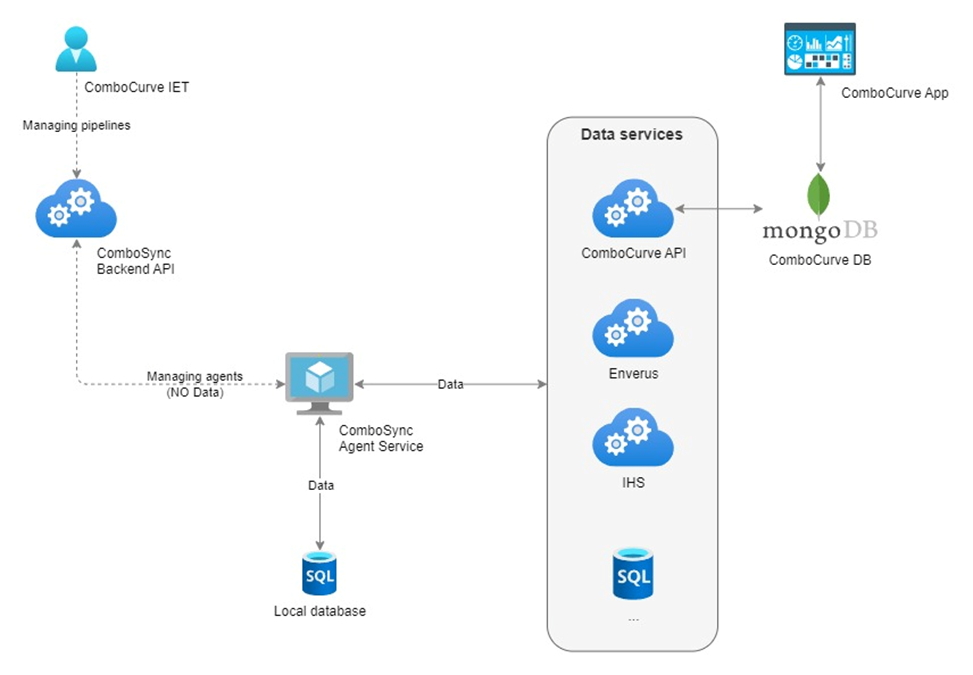

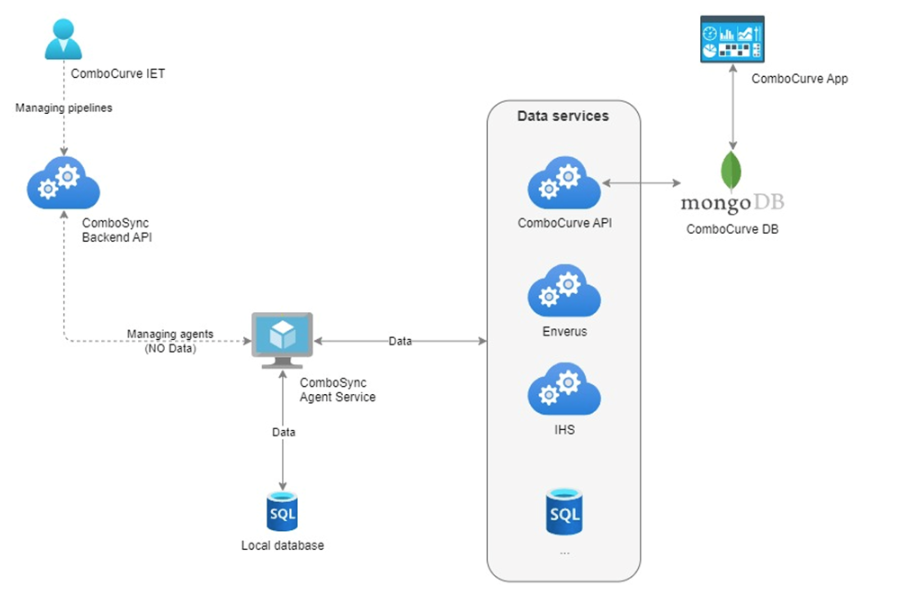

Networking diagram

Supported Connectors

ComboCurve API

•           ComboCurve API Resources

Public Sources

•           SPGCI (formerly IHS Energy)

•           Enverus

•           ARIES Petroleum Economics Software

–          Source: SQL Connection

–          Target: Google Cloud Storage

•           Scout

•           TGS

•           Well Database API

•           ZdScada

SQL

•           MS SQL Server

•           Oracle

•           PostgreSQL

•           MySQL

•           OLE DB

•           Snowflake

•           AWS Redshift

No SQL

•           MongoDB

File Storages

•           AWS S3

•           Azure Blob Storage

•           Google Cloud Storage

•           SFTP

•           Shared folders

•           Local files

File Types

•           CSV

•           Excel

•           JSON

Security

Networking

ComboSync Agent - Required outbound traffics

Data source	Address
ComboSync Backend (required)	syncapi.combocurve.com:443
ComboCurve API	api.combocurve.com:443
Enverus / Drilling Info V3	api.enverus.com:443
Enverus / Drilling Info V2	di-api.drillinginfo.com:443
SPGCI RestApi	energydataservices.ihsenergy.com:443
Scout	staging.fdc.io:443
Well Database API	app.welldatabase.com:443
ZdScada	zdscada.com:443
Other data sources	…

Customer’s credentials

Customer’s credentials are stored in the ComboSync Backend. The credentials are encrypted and stored in a secure way. The ComboSync Backend uses permissions to access it. The encryption key is stored in GCP Secret Manager.
