ComboCurve: Forecast Rollup, Rollup Comparisons, & Aggregate Rollups

Forecast Rollups

In this article, we'll be looking at rollups, aggregate rollups, and comparing rollups in the Forecasting module.

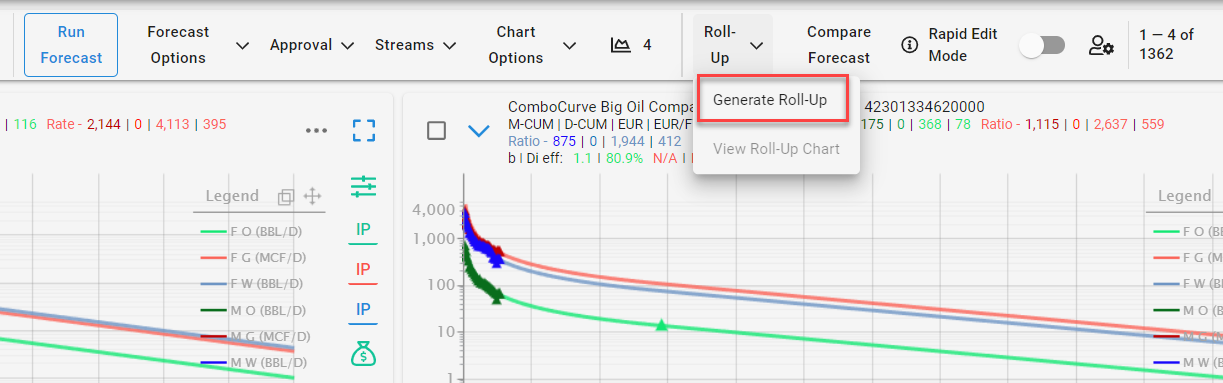

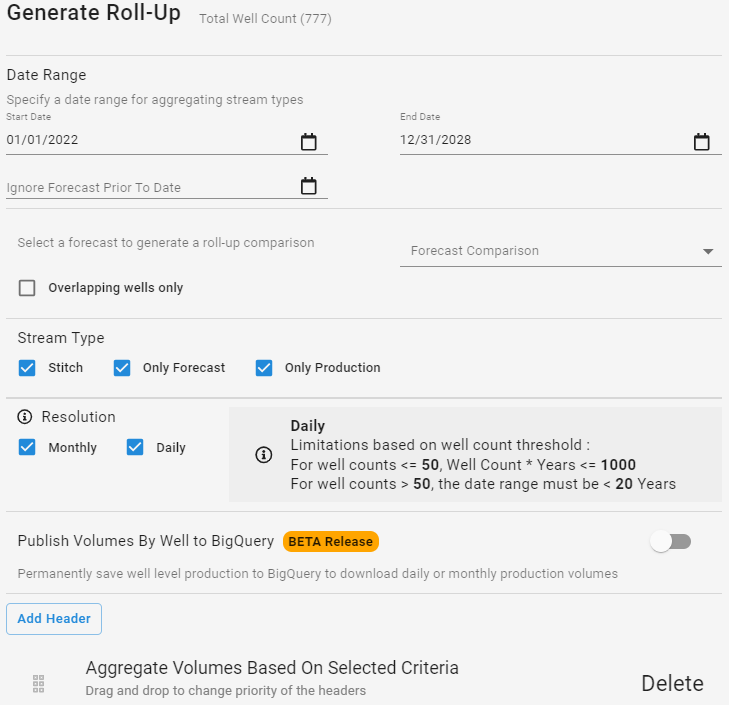

ComboCurve allows users to create aggregate gross volume profiles, otherwise known as rollups, based off of your deterministic forecasts.

Once you've ran forecasts for all of your wells, navigate to the Diagnostics button at the top of the screen.

If you haven't run diagnostics already, please refer to the following documents in steps to do so:

1. ComboCurve: Diagnostics Overview Generation

2. ComboCurve: Diagnostics Dashboard

3. ComboCurve: Diagnostics Metrics Manager

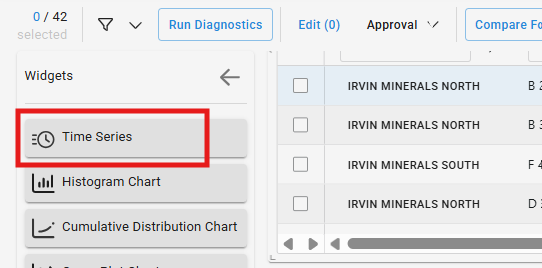

Roll-Ups can now be generated using the time-series table within diagnostics. We can use the time-series table by first selecting the time-series widget and dragging it onto our diagnostics dashboard.

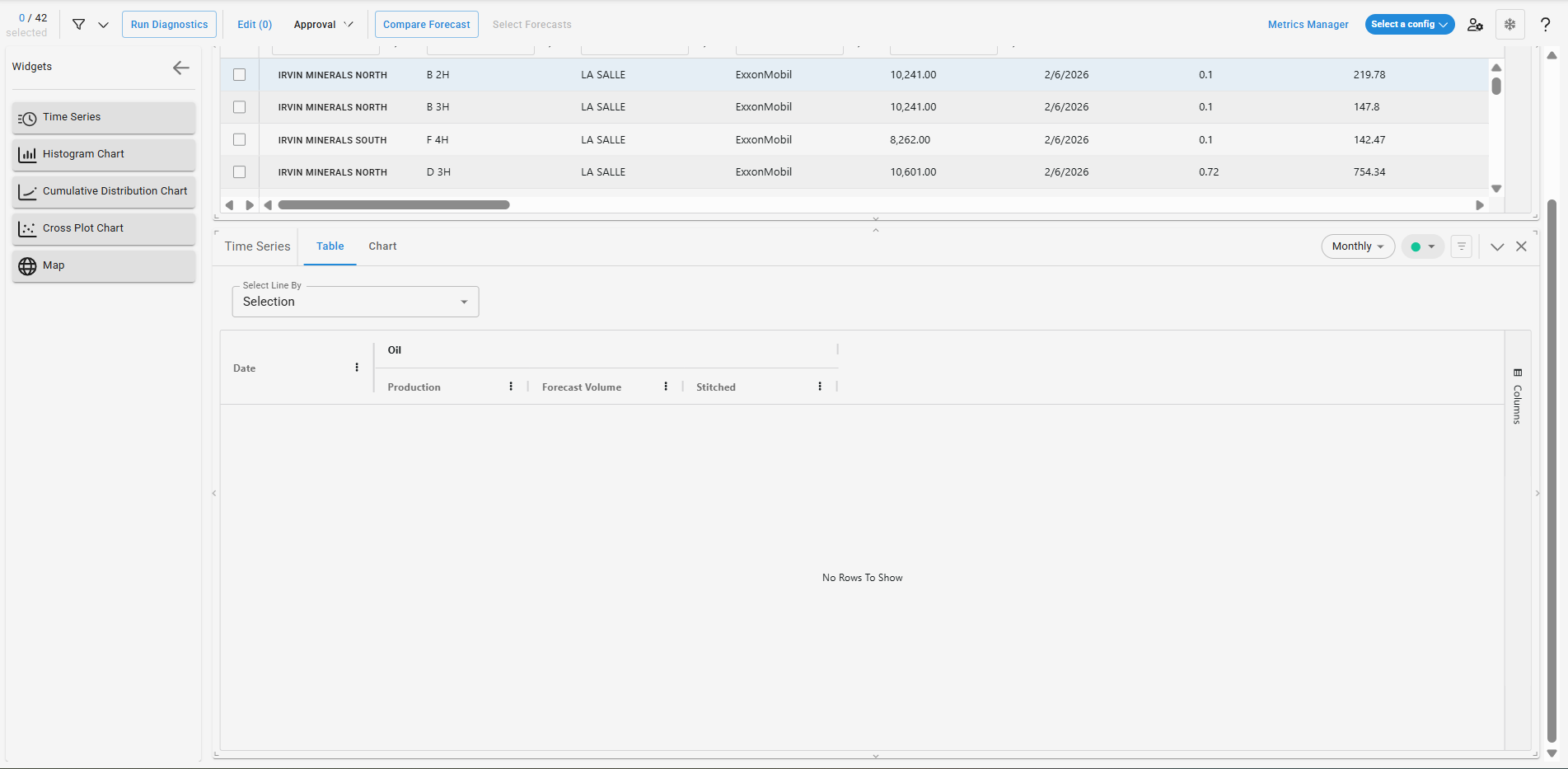

We can now see our time-series table. Notice how it is unpopulated. There is a couple of different ways to populate this.

1. By selection: select the wells to populate with from the Scalar Metrics Table by clicking on the box on the left.

2. By well filter bucket: select a filter of wells to populate with.

3. By header: select a header to populate with.

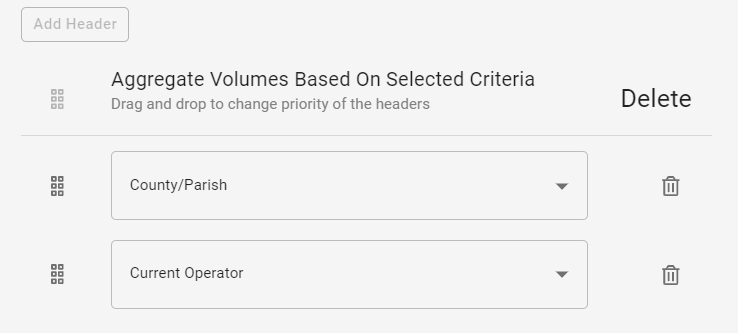

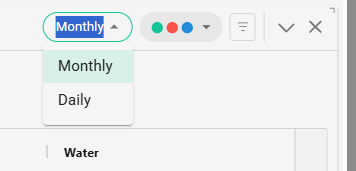

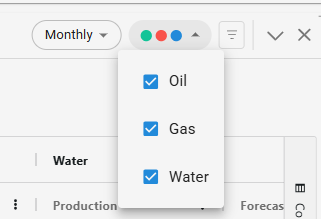

Once the table has been populated, it will automatically aggregate the headers you have selected in the metrics manager. Additionally, within the time-series table, you have the ability to choose between monthly and daily data as well as change the streams you are viewing.

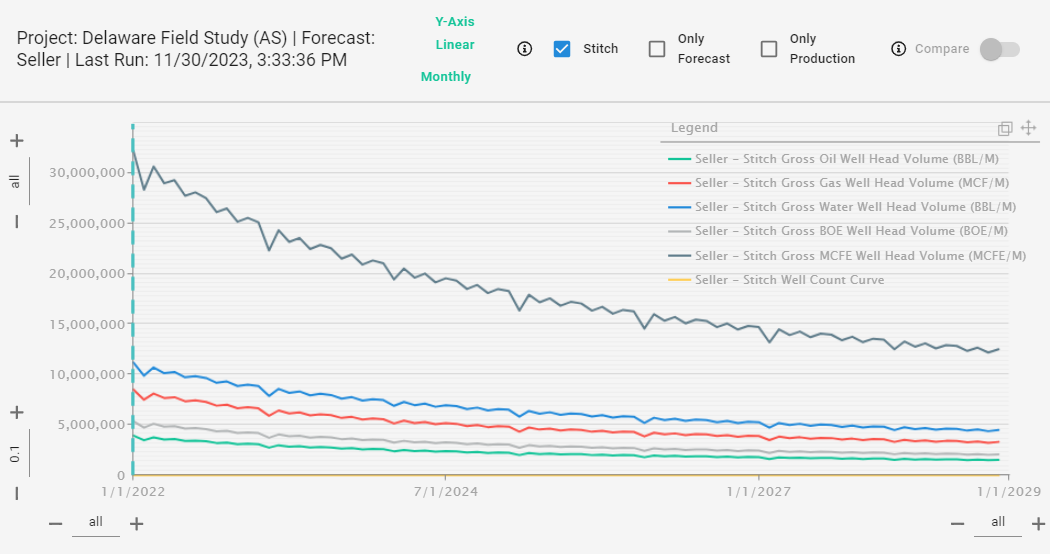

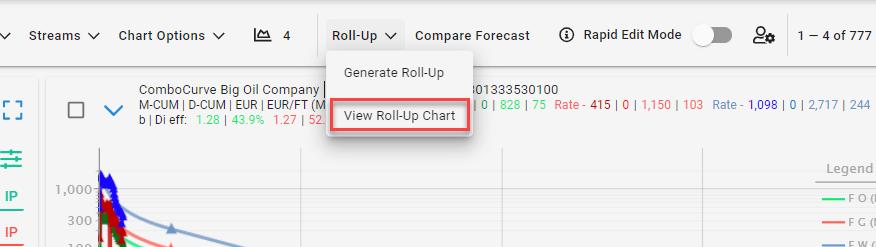

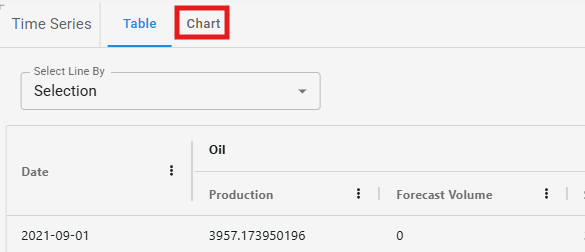

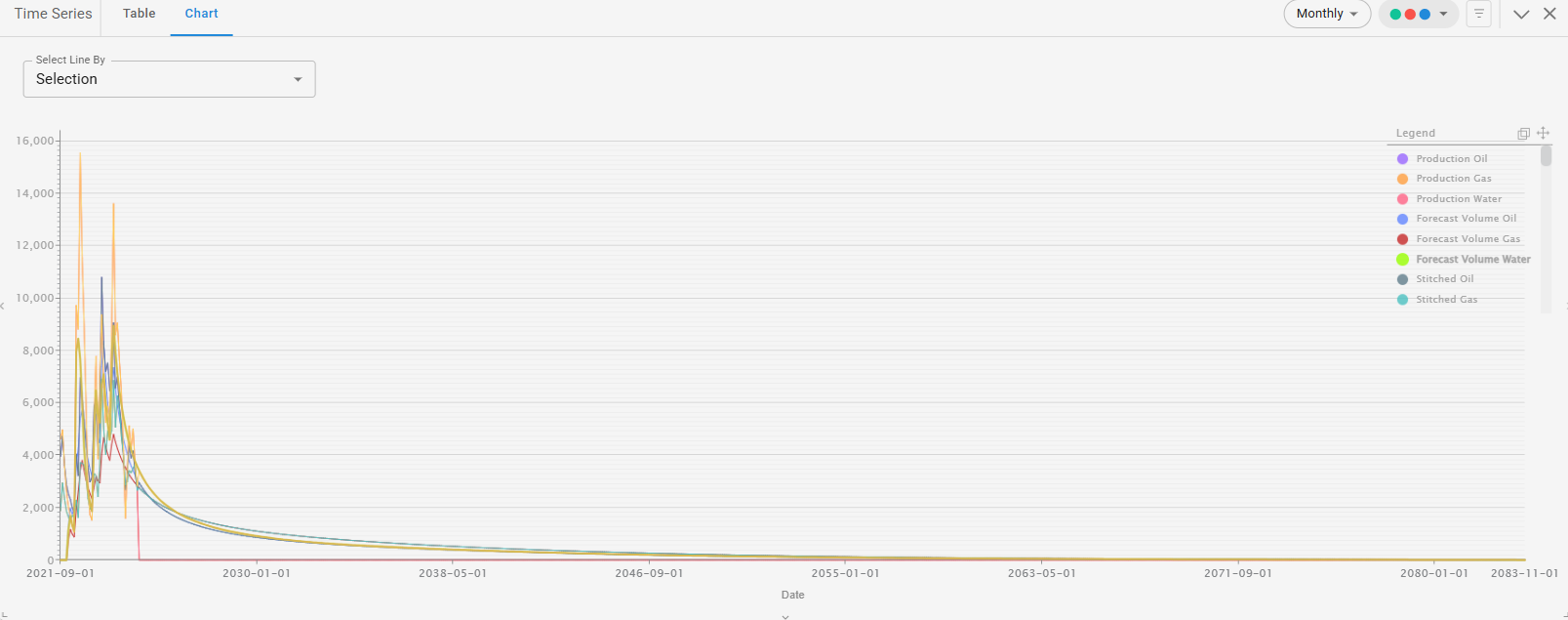

To view our roll-up chart, navigate to the chart button on the top of the time-series table widget.

Once satisfied with the output, you can right click anywhere on the table to export to a csv or excel file. Exports respect the ordering and series choices set within the widget at the moment of export.

Note: Some ordering choices are not saved between sessions.

Comparing Rollups

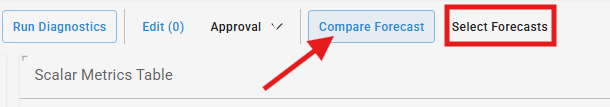

Lastly, we also have the capability to compare your forecast rollup volumes. Navigate to the top of the screen and toggle on the "compare forecast" button. Then click on "select forecasts."

Note: Diagnostics must be ran on the forecast you want to compare prior.

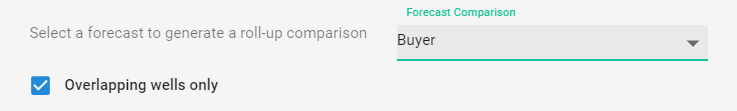

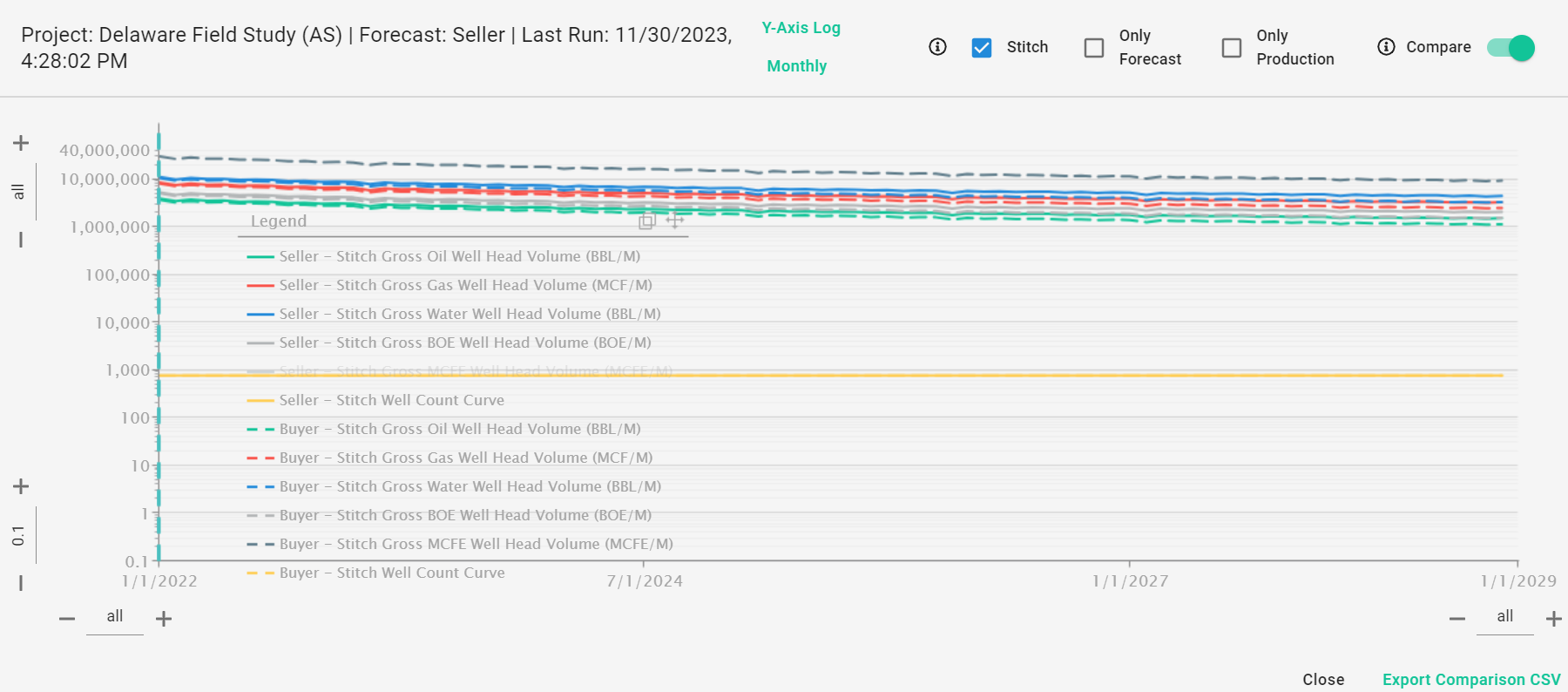

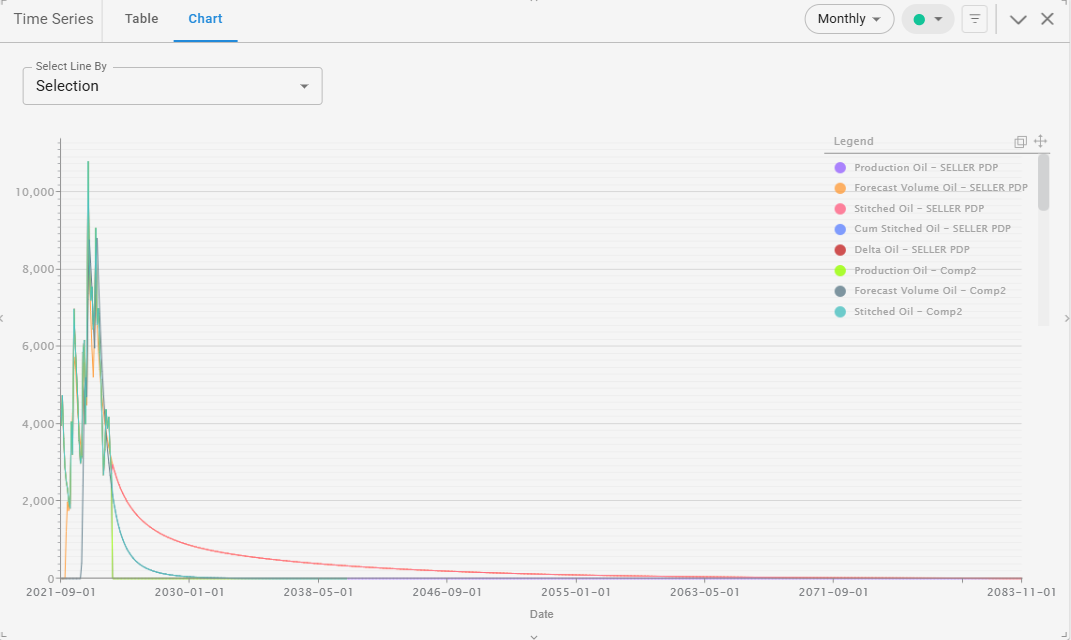

Select the forecasts you want to compare, then click Confirm. The time-series table will update automatically. Differences in the metrics can be viewed in both the table and the chart view. You can also export this comparison from the table using the same method as before.
