ComboCurve: Company Custom Headers and Company Custom Streams

ComboCurve: Company Custom Headers and Company Custom Streams

Company Custom Headers

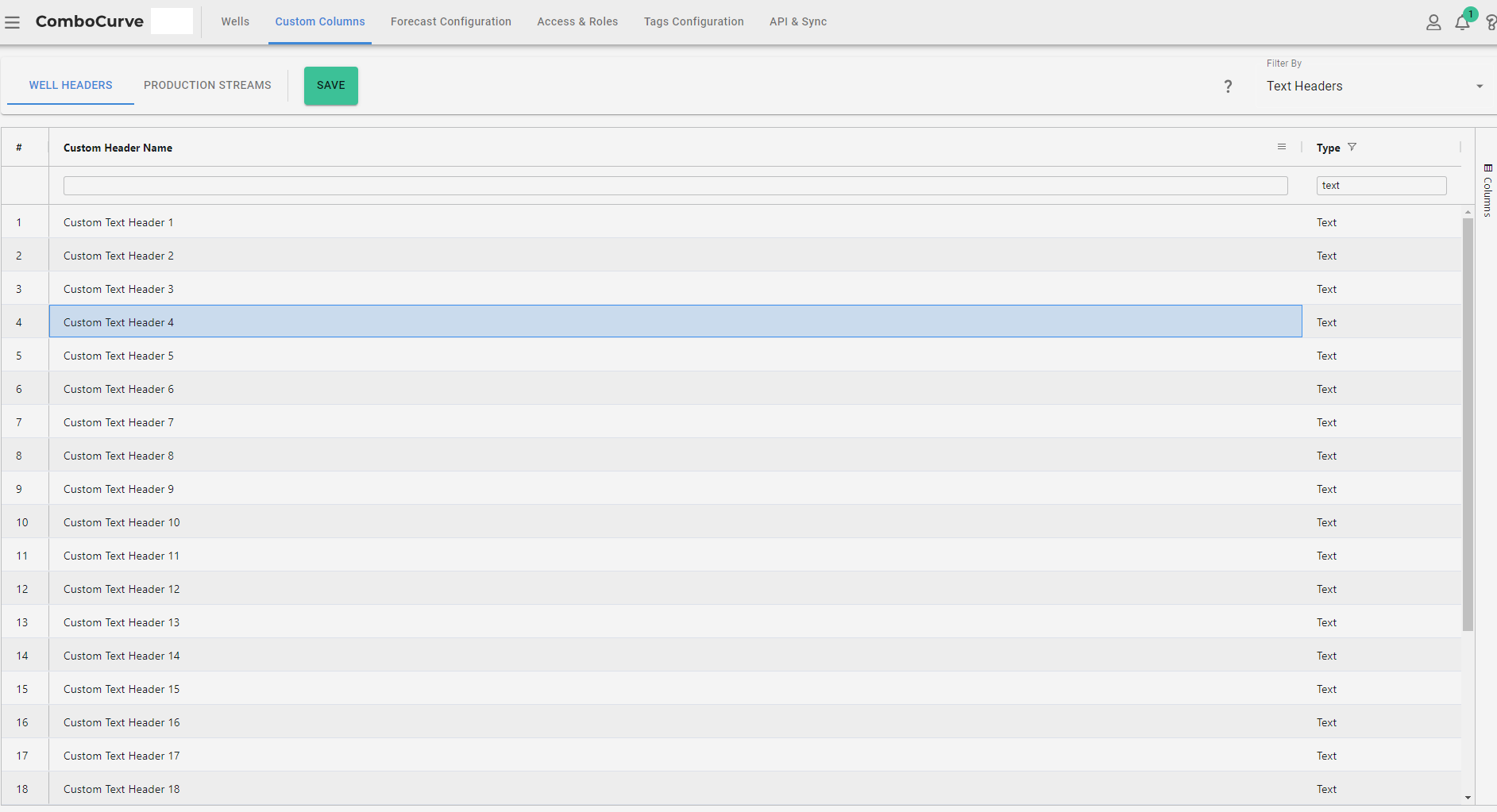

Company Custom headers can be created at the company level under the custom columns tab. Inside the custom columns tab you will see that two options, well headers and production steams. Clicking on well headers allows the user to edit and rename the company custom headers. ComboCurve supports a variety of data types ranging from text, numeric, date, and boolean headers.

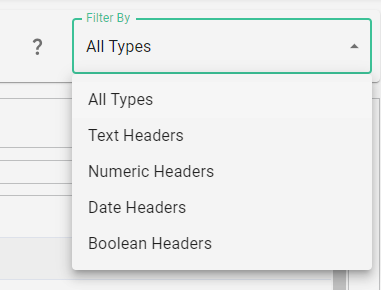

The user can filter by these headers by clicking on the drop down and selecting the header type they would like to view, or they may view all company custom headers by selecting All Types.




Once the user is satisfied with the edits they have made to the header alias's, they can click save. All the company custom headers will be shared to all project and other users in the environment. These company custom headers can be used during CSV import and/or with API/Sync connections.

Company Custom Streams

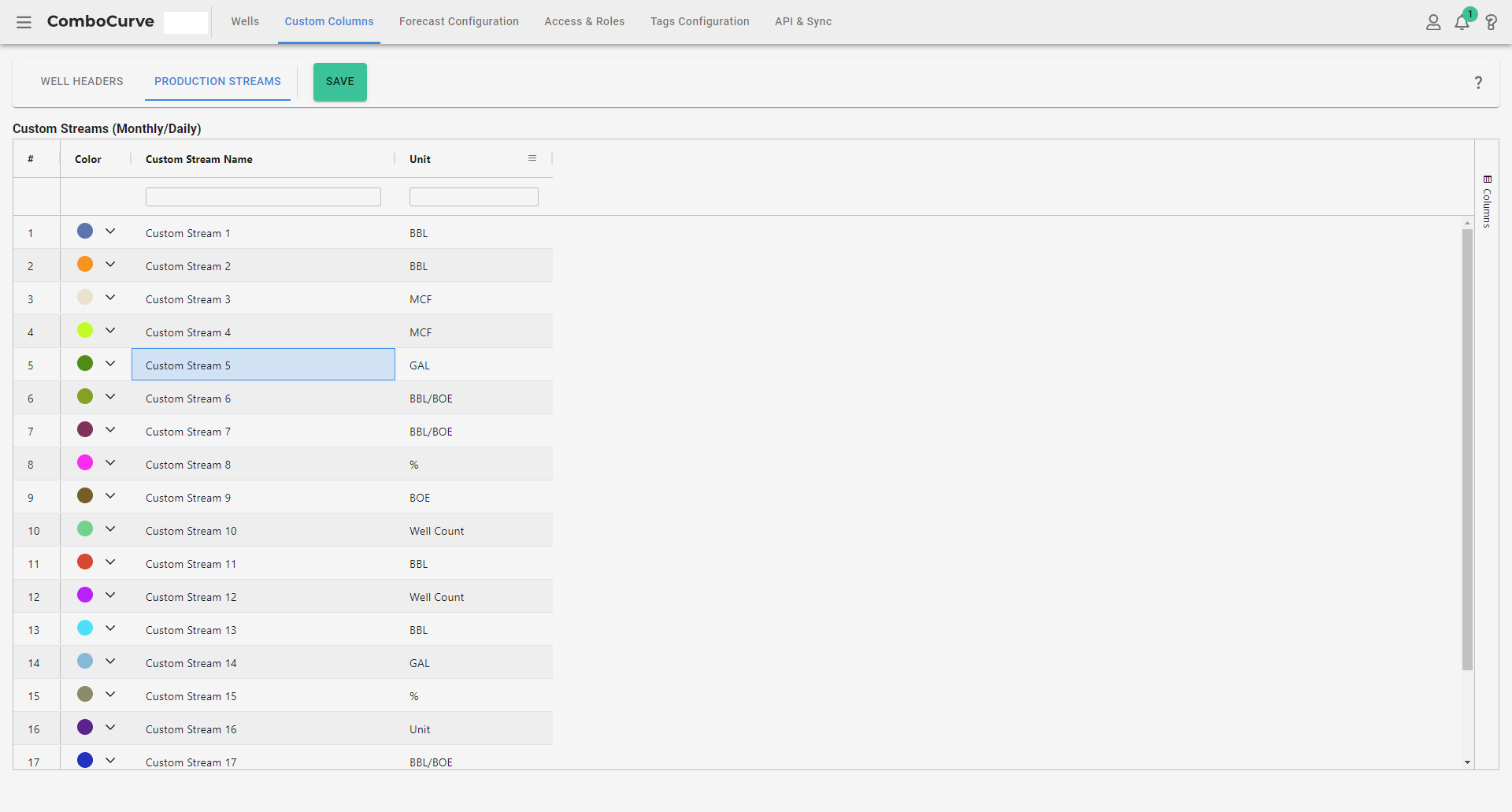

Inside the custom columns tab the user will find production streams. Under production steams the user is able to rename the company custom streams to better represent the data contained in the field. Custom steams are used to house non-standard (oil, gas, water) time series data. This data can be used in to forecast and run economics on non-standard steams. Each company custom stream will conation both daily and monthly data resolutions.

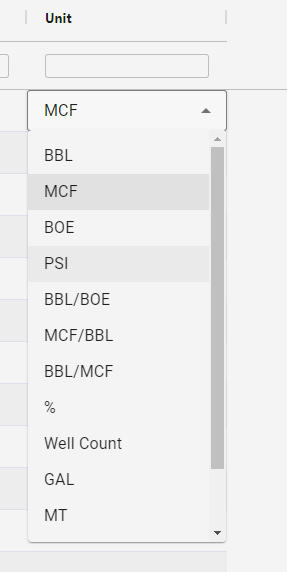

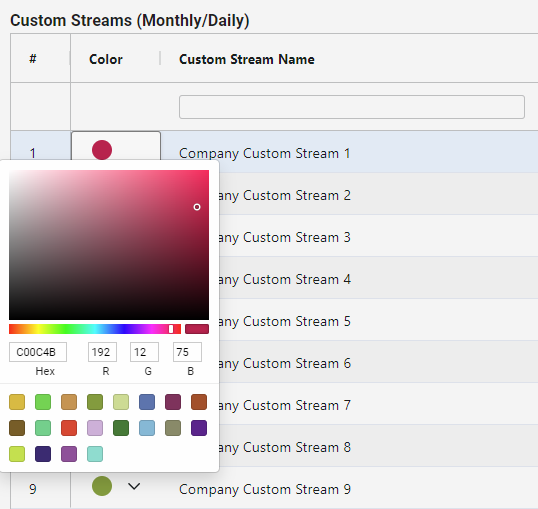

The user is able to select a color to represent this stream. This color is used through out the environment to designate the stream. The user also has be ability to select the units of the stream. Similar the stream color, these units will be used through out the environment. Currently ComboCurve supports the following units:

1. BBL
2. MCF
3. BOE
4. PSI
5. BBL/BOE
6. MCF/BBL
7. BBL/MCF
8. %
9. Well Count
10. GAL
11. MT
12. ppm
13. Unit




Once the user is satisfied with the edits they have made to the stream alias's, they can click save. All the company custom streams will be shared to all project and other users in the environment. These company custom streams can be used during CSV import and/or with API/Sync connections.
